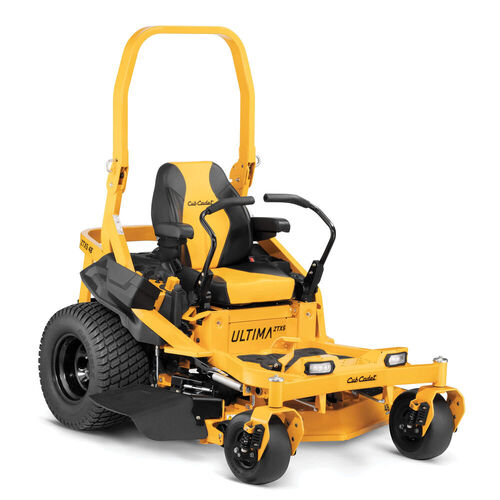

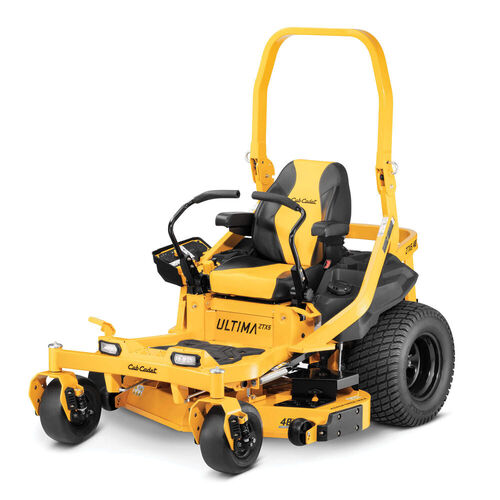

Cub Cadet Ultima ZTX 5 48
Original price was: $7,499.00.$224.99Current price is: $224.99.
Trust and performance converge! Our mowers deliver consistently perfect lawn results.ZTX5 48Ultima Series ZTXThoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenanceEquipped with a powerful 23 HP Kawasaki® FR691 V-Twin OHV engine for reliable starting and exceptionally…
Description
Trust and performance converge! Our mowers deliver consistently perfect lawn results.
-
Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
-
Equipped with a powerful 23 HP Kawasaki® FR691 V-Twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
-
Commercial-grade dual Hydro-Gear® ZT-3200 hydrostatic rear-wheel transmissions for quick and effortless up to 8.5 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds.
-
Independent suspension caster wheels that deliver a smooth ride with less vibration.
-
Four-year/500 hour product warranty plus limited lifetime warranty on the frame and fabricated deck shell give you peace-of-mind
-
Ideal for 4-9 acres with slightly rolling hills and several obstacles
WATCH VIDEO
Engine
Engine Brand
Kawasaki®
Engine Model
FR Series
Engine Displacement
726cc
Engine Output
23 hp
Fuel Tank Capacity
5.5 gal.
Cylinders/Material
Twin
Engine Start
Key
Engine Oil Capacity
2.1 quarts
Lubrication
Fully pressurized
Battery
12V 230 cold crank amps
Charging System
15 Amp Regulated
Fuel Gauge
Fuel Gauge
Governor
Manual
Choke
Separate choke and throttle
Air Filter
Dual element
Oil Filter
Yes
Drive System
Transmission
Hydro-Gear ZT 3200
Forward Speed
8.5 MPH
Reverse Speed
3.5 mph
Rear Axle
1.125″
Transmission Housing
Cast aluminum
Transmission Type
Hydro-Gear ZT 3200
Cutting Deck
Deck Cutting Width
48″
Cutting Modes
Discharge/mulch/bagging
Deck Material
10-gauge AeroForce Max™ fabricated steel / double plate reinforced spindle mounts / 7-gauge side wraps /skid plate
Deck Attach/Removal
Removable
Deck Engagement (PTO)
Pull knob (electric)
Deck Construction
Fabricated
Spindle Construction
Sealed cast aluminum housing (Maintenance free)
Blade(s)
3
Deck Lift
Foot pedal with Dial Adjust
Cutting Height Range
1″ – 4.75″, 5″ transport
Anti-Scalping
2 ball, 1 nose
Deck Positions
16 positions and transport position
Chassis
Frame
1.5″ x 3″ tubular steel frame
Front Axle(s)
Fabricated steel
Turning Radius
0″
Front Tires
13″x6.5″-6″
Rear Tires
23″x12″-12″
Tire Tread
Turf Master/Multi Trac
ROPS
Included
Rear Tow Hitch
Included
Corrosion Protection
Triple Guard Corrosion Defense System™
Yokes
5/16” steel
Controls
Brakes
Lap bar integrated
Steering Wheel Control
Lap Bars
Headlight(s)
2 – LED
Display
Hour meter
Comfort
Seat Type
24″ high back seat
Arm Rests
Included
Seat Suspension
Advanced polymer
Seat Adjustment
Lever
Floor Mats
Rubber
Steering Comfort
Quick adjustable (no tools) Soft Touch lab bars
Additional Specifications
Mulch Kit
Optional
Discharge Chute
Included
Cup Holder
Included
Operator Presence System
Included
Bagger
Optional
Specifications
Series
Ultima Series ZTX
Warranty
Warranty
4-year/500-hour warranty
Frame Warranty
Limited lifetime warranty
Deck Shell Warranty
Limited lifetime warranty
